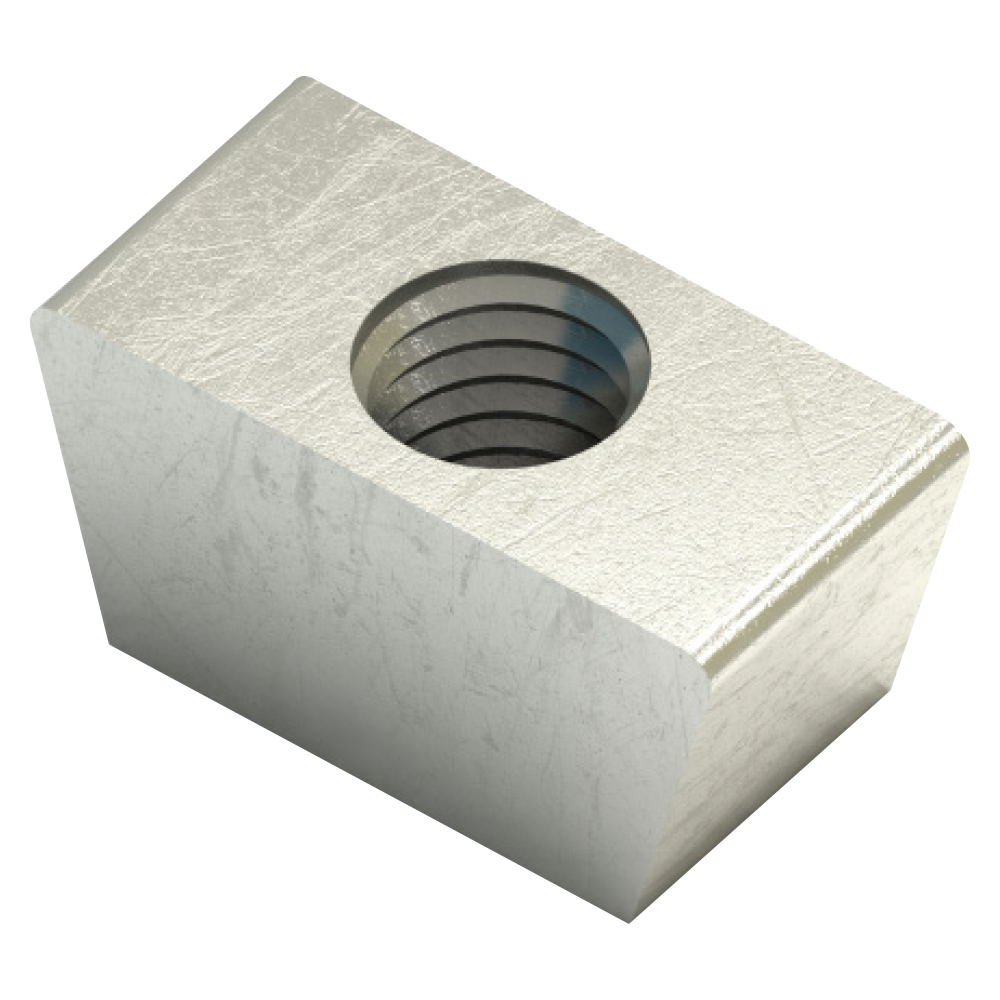

Lindapter Type VN10 Decking Fixing M10

The Type VN is a versatile and cost effective decking fixing designed to fit inside the dovetail re-entrant channel of several composite floor decking profiles including AMDECK^® 54, R51+, ComFlor^® 51+, Holorib, Superib, Multideck^® 50 and MetFloor^® 55.

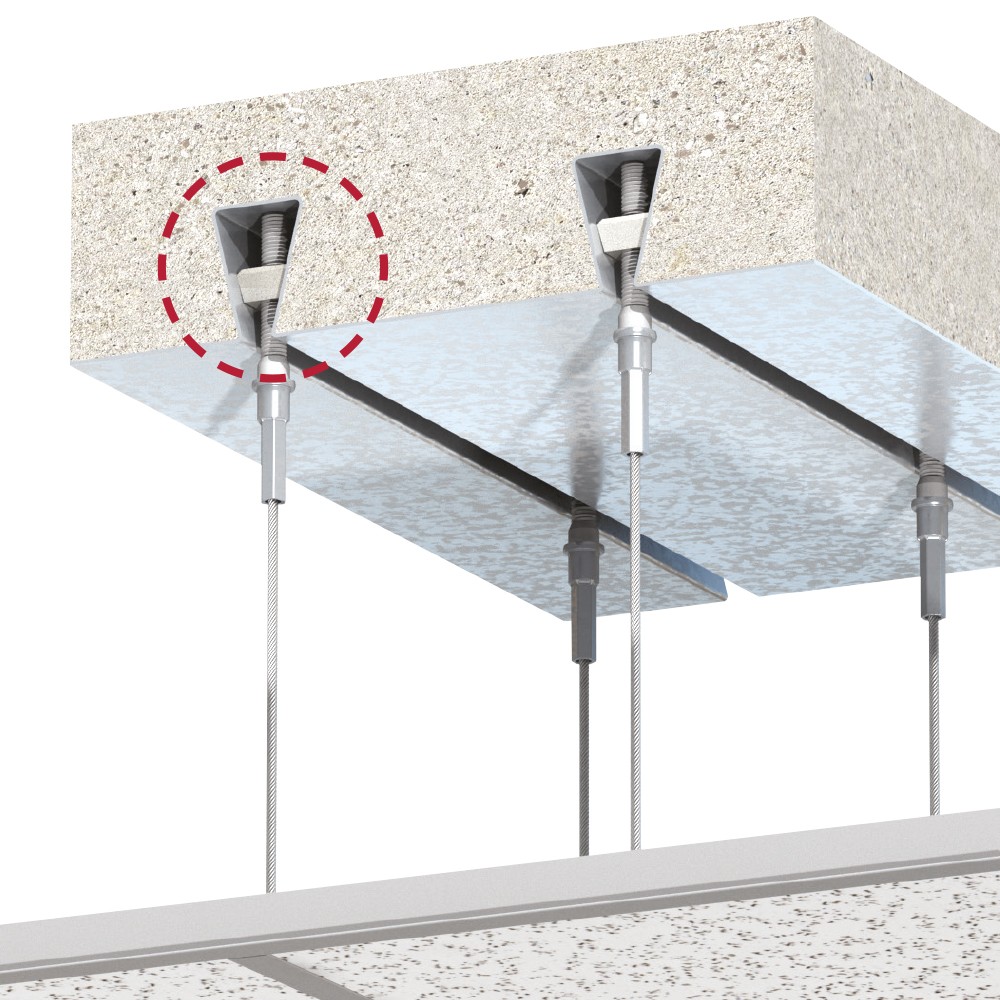

After the concrete deck has been poured and has reached full strength the Type VN can be installed. The fixing provides a zero-impact method of connection that avoids delamination and damage to the concrete deck. The V-Nut with an appropriate threaded rod is inserted into the re-entrant channel and made secure by rotating it 90° so that the tapered edges engage the sides of the re-entrant channel. Building services can then be easily and quickly suspended from the roof deck.

If the decking profile is deformed or distorted, do not install the fixing. If in doubt, contact Technical Support for advice.

See the Lindapter Decking Fixings poster linked below for full compatibility.
