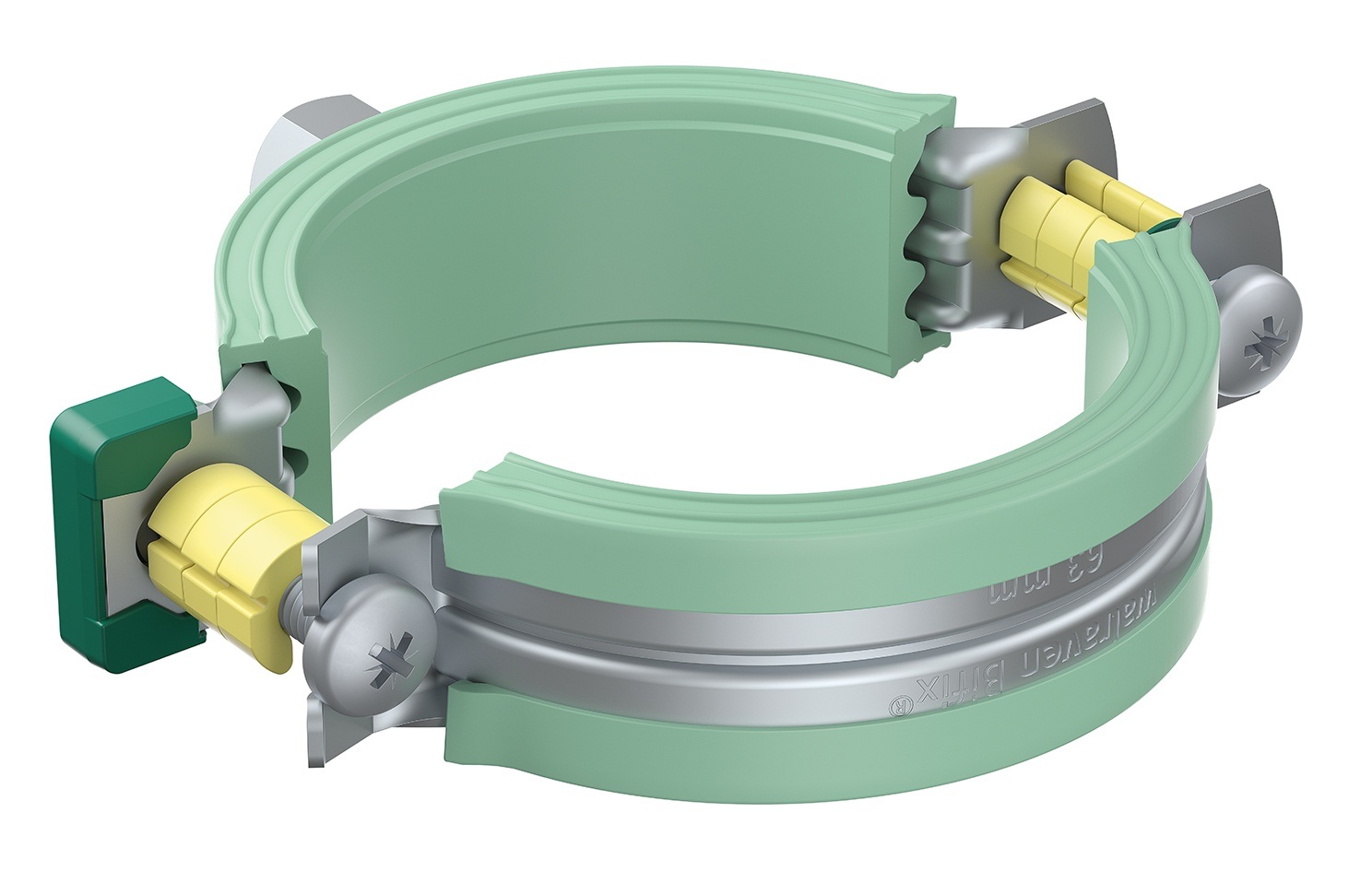

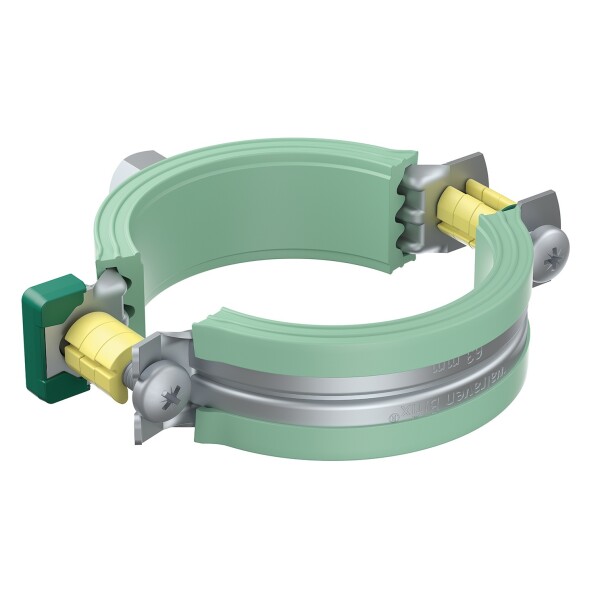

Walraven 50mm Green Rubber Lined Clip BIS Bifix® 5000 G2

Wallraven BIS Bifix® 5000 G2 Clamp for 50mm diameter plastic pipes
Next generation rubber lined clips

Uniquely designed for plastic pipes
– For plastic pipes Ø 50mm
– For sliding & tight fixing
– With space washers for sliding application
– Without space washers for fixed application

Advanced surface protection with BIS UltraProtect® 1000
– For indoor & outdoor use with extreme corrosion resistance
– C1-C4 / ISO 12944-2
– Salt spray test – 1000 hour / ISO 9227

Comfortable and secure to install
– Quick-fixing hinge with captive nut
– Anti-loss screw
– Innovative locking; interlocking for more security
– Noise reducing thick rubber lining

Advanced geometry
– Increased strength thanks to advanced geometry folded edges at clamp’s lip

Features and benefits
– Two-screw clamp
– With quick locking system
– With removable spacer washers, making the clamp suitable for either sliding or anchoring
– Surface protection: product is part of the BIS UltraProtect® 1000 System
– Noise insulating lining according to DIN 4109
– Age resistant green EPDM lining, specifi c for application with plastic pipes
– Inner part of lining is smooth to improve sliding of pipe in clamp
